Dual Boom Series

Dual Boom Series

The Dual Boom topper hedgers can meet the growing needs of the commercial operators and larger growers.
Tops both sides of a row in a single pass
Its unique design is versatile and increases productivity.
Each boom to be moved independently of each other making the DB series most versatile and productive machines to date.
Designed to cut up to 6 inch wood.
Appropriate for most tree crops.
Mounted on our 6 cylinder T4 power unit


Specifications:
• Cutting Pass (Per Side): 11ft, 13ft, 16ft
• Min Hedging Width: 2ft, 4ft 6in, 34in
• Max Hedging Width: 12ft, 13ft, 36in
• Max Hedging Height: 29ft, 32ft, 36ft
• Max Flat Topping Height: 20ft, 21ft, 20ft
• Transport Height: 11ft, 12ft, 12ft
• Engine: 140hp, 200hp John Deere Tier 4 Diesel engine
• Optional 4-Wheel Steering
• Optional Side-Tilting Chassis

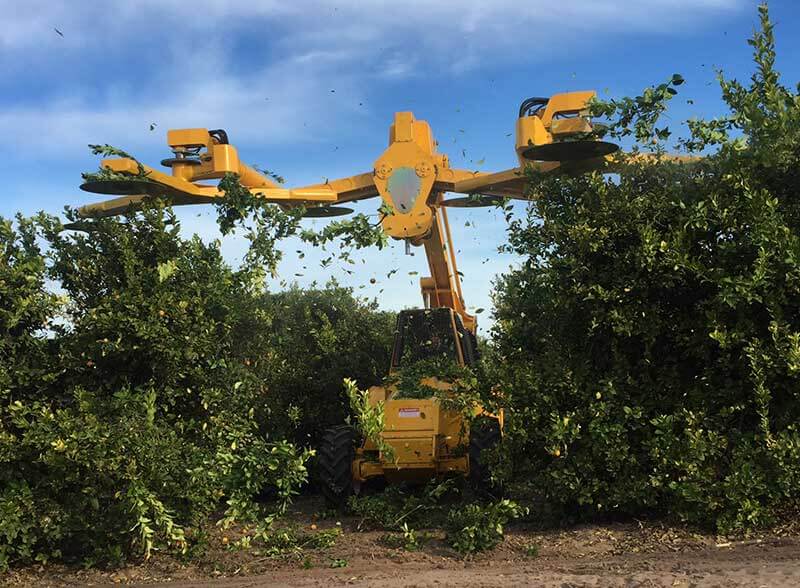

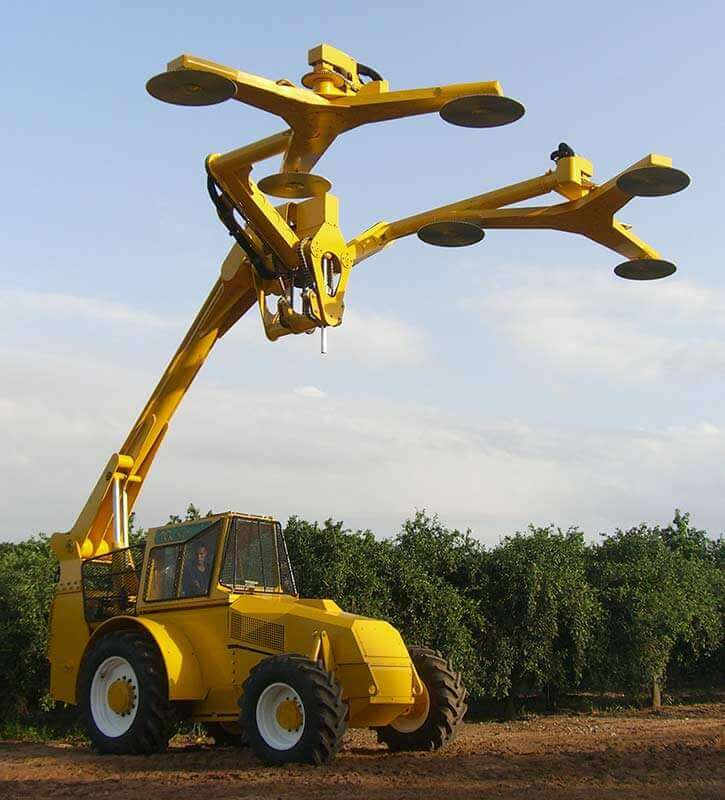

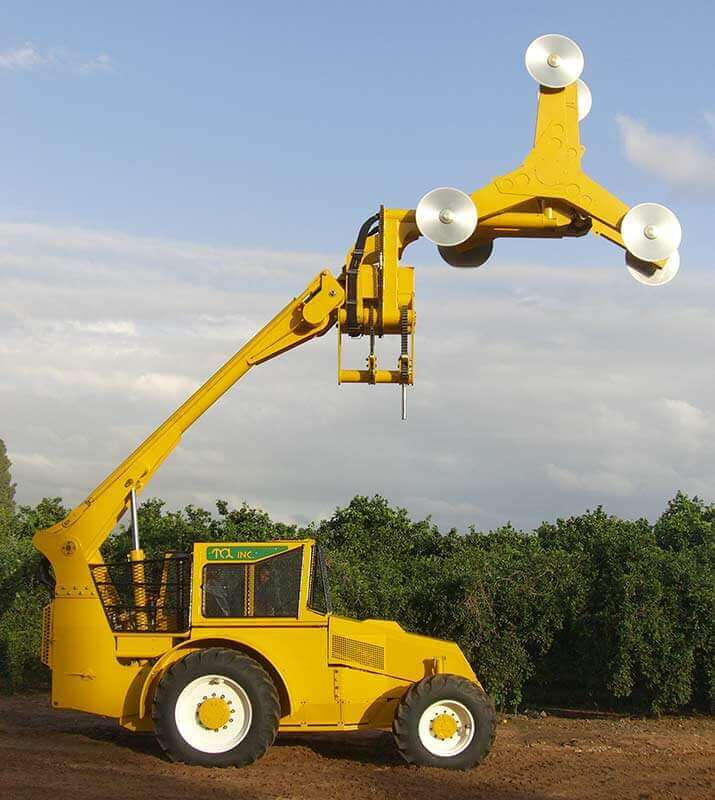

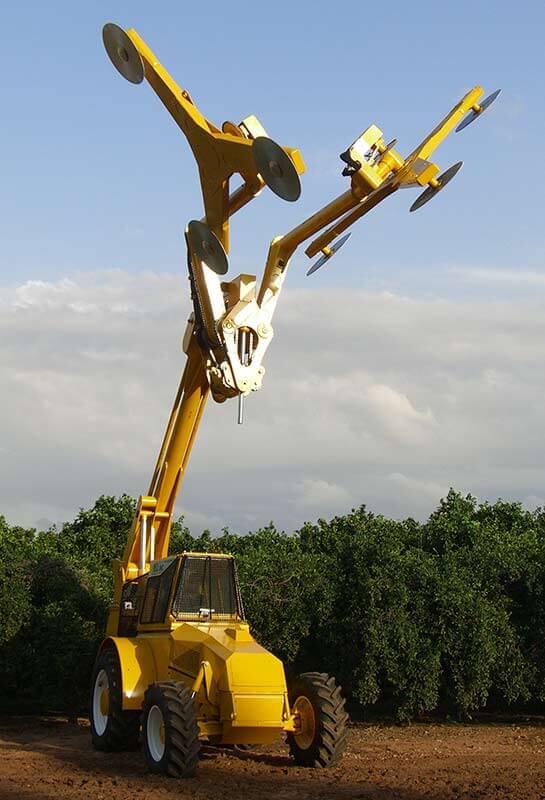

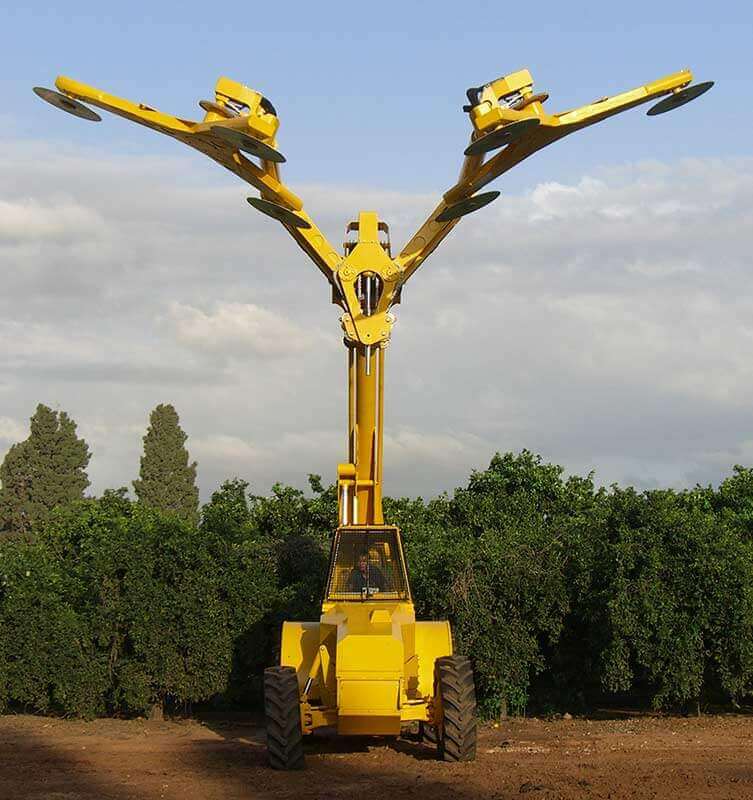

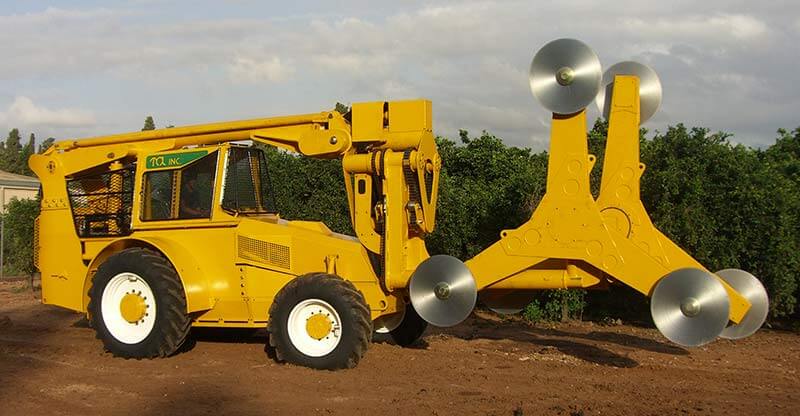

Dual Boom Series Image Gallery

Dual Boom Series Video Gallery

Dual Boom Series Models

HD-1400
T4

  • 13ft
  • 32ft

HDR-1100-4PU
T4

  • 11ft
  • 29ft

HDR-1100N-
T4

  • 11ft
  • 29ft

HD-1800-RM
T4

  • 16ft
  • 36ft

HDR-1400
T4

  • 16ft
  • 36ft

HD-1800AB
T4

  • 16ft
  • 36ft
